PX90 PON Internet Service Installer | Quick Start Guide

This Quick Start Guide summarizes the PX90 PON Internet Service Installation Meter's basic operation and its main Test Applications.

Table of Content

  1. Becoming Familiar with the PX90 Test Set
  2. System, Tools & Settings Menu
  3. Test Applications
  4. File Manager - Results. Profiles & Screenshots

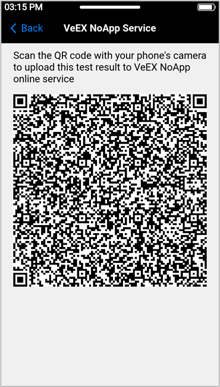

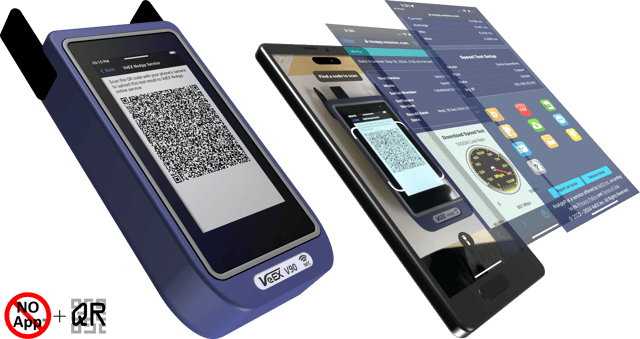

  5. NoApp® Results Transfer via NFC and QR Code
  6. Software Updates


1. Becoming Familiar with the PX90 Test Set

Part of VeEX's V90 product family, the PX90 PON Service Installation Meter is a Selective Optical Power Meter (PON OPM) for G-PON and XGS-PON, enhanced with LAN and WLAN (Wi-Fi) Internet access speed testing capabilities, for service validation. This complete test set provides field technicians with the tools required to verify optical signal levels, Wi-Fi coverage and quickly validate service speeds and assure quality of experience (QoE) for residential subscribers.

  • The PON OPM supports G-PON, XGS-PON and coexistent G-PON + XGS-PON modes. The PON OPM terminates the optical link under test and separates (filters) each signal and measures them separately.
  • The Wi-Fi option supports legacy, Wi-Fi 6 and 6E (2.4, 5 and 6 GHz bands).
  • The LAN (RJ45) test port supports 10/100/1000BASE-T. Cat5e UTP, or better, patch cords are recommended.

1.1 Key Platform Elements

Image of the V90 platform with bullets to describe its main features

  1. Connector Panel - Test Ports.
  2. LCD Screen with capacitive touchscreen.
  3. Power Button - Press to turn ON. Press and hold to turn OFF.
  4. USB-C Port - For DC charging and optional external dongles (e.g., memory stick, Ethernet adapter).
    • Requires USB-C PD (power delivery) compatible charger and cable. Use the charger and cable supplied by VeEX! The smart USB-C PD charger must be capable of delivering 15 VDC and up to 3.0 Amps.
  5. Smart NFC Tag – Bring a modern smartphone close to the Near Field Communication transceiver to quicky transfer information from the test set to the web browser.
  6. System & Test Features Menu - Swipe down from the top of the screen to reveal system information, configuration and access the test set's main test features.
  7. Test Application Functions, Options & Settings – Swipe up from the bottom of the screen to reveal the active Test Application's functions, options and settings.
  8. Previous Page - Swipe right to go back to the previous page.
  9. Next Page - Swipe left to go to the next page available.
  10. Screen Capture - Swipe down, from the middle of the screen, using three fingers, to capture a screenshot of the content currently being displayed. The image is saved in the File Manager with a generic timestamped (YYYYMMDD_hhmmss) name.
  11. Wi-Fi & Bluetooth® - Optional built-in Wi-Fi and Bluetooth transceivers for management, remote access and/or testing. Check datasheet for further details about versions and bands supported. (Factory-installed hardware option.)

1.2 PX90 Connector Panel & Test Interfaces

PX90 Connector Panel with Optical Power Meter and Ethernet test ports

  • OPM - FC/APC terminated PON selective (filtered) Optical Power Meter input port (included connector cover not shown). Refer to the datasheet for details about wavelengths, levels and any available options.
  • ETHERNET - RJ45 10/100/1000BASE-T test port for wired Internet access speed test (QoE) validations.
  • Wi-Fi 6E - Optional factory-installed built-in 802.11 a/b/g/n/ac/ax (2.4, 5 and 6 GHz) wireless interface for coverage verification and Internet access speed test (QoE) validations. (Note: The Wi-Fi functionality is available in two versions: Connectivity-only and Connectivity + Testing.)


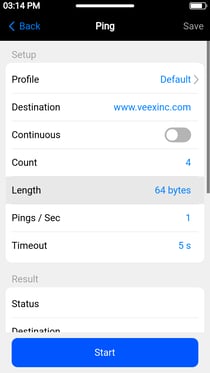

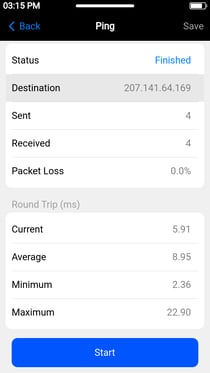

2. System, Tools & Settings Menu

Swipe down from the top of the screen to reveal the System, Settings & Tools menu. Swipe up from the bottom, or tap on the Swipe-up to close icon icon, to close.

V90 System, Tools and Test Application selection menu - Page 1 V90 System, Tools and Settings selection menu - Page 2

Date & Time - Displays current date and time. Tap on this button to adjust the system's date, time, time format, time zone, etc.

About button shows test set's information and version About - Provides test set's serial number, information, software version, licenses/options and system's internal storage details.

General system settings menu Global Settings - General platform and system configuration.

Company and user information Owner Information - Create and access owners' profiles, with company and user contact information, to be added to test reports.

Simple calculator utility Calculator - Simple calculator utility.

Screen capture function Screen Copy - The screenshot (screen capture) function saves the content of the screen (being displayed prior to opening the System Menu) into the File Manager, in PNG format, and organized under Screen file type. This is similar to using the three-finger swipe down. The image is saved in the File Manager with a YYYYMMDD_hhmmss (timestamp) name.

Touchscreen lock button Screen Lock - Touch this button to LOCK the touchscreen and prevent accidental operations. The screen content will be grayed out and the Touchscreen unlock button displayed when the screen is locked Unlock button will be displayed in different places of the screen. Touch and hold the Touchscreen unlock button displayed when the screen is locked button to UNLOCK the touchscreen.

Cloud Services access menu Cloud Services - Provides access to R-Server cloud services.

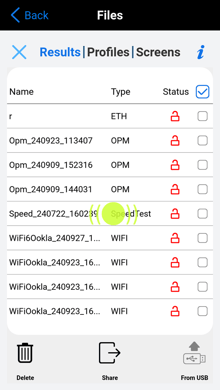

File Manager - Access and manage test results, test profiles and screenshots. Files can be renamed, deleted, locked, shared, uploaded to R-Server or transferred to/from USB memory sticks.

Battery Status - Displays current battery charge level, charging status, time to reach full charge or remaining operation time (under the current load conditions). A small power status icon is also displayed on the top bar.

  • A power LED above the screen indicates whether the test set is ON (green), OFF with charger plugged in (Orange), or OFF without charger plugged (off).
  • In Low Battery condition, the test set will start beeping to warn users that it needs to be recharged.

Screen backlight brightness control icon Brightness Control - Touch the screen (LCD) backlight button and drag it UP and DOWN to increase and decrease the backlight intensity.

Bluetooth control and pairing Bluetooth - Bluetooth transceiver ON/OFF and pairing. A small Bluetooth indicator icon is also displayed on the top bar, when Bluetooth os ON and the test set is discoverable. Initiate the pairing process from the computing device (PC/tablet/phone) and use the last four digits of the S/N as PIN.

EZ Remote cloud service configuration EZ Remote - Remote control cloud service (basic service provide free of charge). Enable/Disable remote access (Internet access required for the test set and the controlling PC, tablet or smartphone).

  • Press the Connect button to register the test set on the EZ-Remote server (free cloud service) to make it available for others to use.
  • Scan the QR code, with a smartphone of tablet, to send an Email of SMS/TXT notification to your peers. A direct link will be included in the messages, along with any comments and passwords edited into them, so remote users just have to click (or manually go to https://ezremote.veexinc.net and enter the test set's Serial Number and Password).
  • For more information go to https://kb.veexinc.com/en/knowledge/remote-control-veex-test-sets.

Test application buttons allow access to the different test functionsTest sets supporting multiple tests, display their Test Application access buttons at the bottom of the System Menu screens. Tap on any of them to access their distinctive test features and functions.



3. Test Applications

3.1 Selective OPM for G-PON & XGS-PON

Selective GPON & XGS-PON Test ApplicationSelective (filtered) Optical Power Meters are used to measure the individual signal levels in Optical Distribution Networks (ODN) carrying multiple services, like in coexistent (CEx) PON deployments. Since there may be multiple wavelengths on the fiber being tested, traditional broadband OPMs DO NOT work in these environments.

Swipe down from the top, to open the System & Tools menu, then tap on the PON OPM button to activate this test application. A selective (filtered) optical power meter (OPM) separates coexistent G-PON 1490 nm and XGS-PON 1577 nm downstream wavelengths, to simultaneously measure their individual optical power levels. These measured signal levels can be compared against standard (or customized) minimum and maximum thresholds expected for different network points to diagnose if the physical link passes of fails the applicable installation requirements.

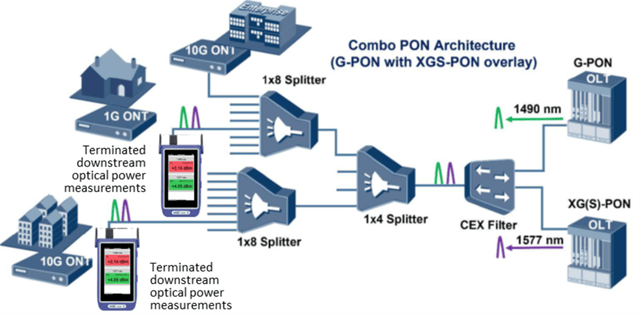

Typical test application diagram for coexistent (CEx) GPON and XGS-PON networks, depicting filtered optical power measurements with VeEX PX90

Test Application Settings and Functions Menu

Test application menu (swipe up to display it)

Swipe-up from the bottom to reveal the Test Application menu.

  • Tap on the Test configuration button Config button to setup the network reference test point (ONT or OLT sites), PON Classification and PASS/FAIL Thresholds.
  • After taking measurements, tap on the Save test results Save Results button to store the current values. Users can overwrite the default File Name with a custom name, as well as add extra information such as Job ID, Node ID (Location or Site), subscriber's Account. Tap on the OK button to save.

Users can configure the OPM to measure power from G-PON's 1490 nm, XGS-PON's 1577 nm or Both wavelengths, and Enable or Disable the Pass/Fail Thresholds evaluation.

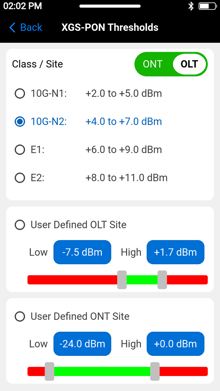

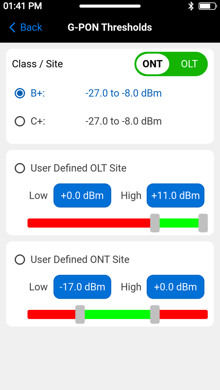

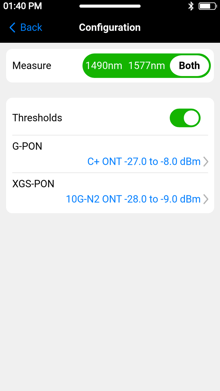

OPM configuration menu OPM G-PON thresholds configuration page OPM XGS-PON thresholds configuration page

When thresholds are enabled, tap on the G-PON or XGS-PON fields to configure the Site (ONT or OLT location) and transmitter Class. Users can select standardized thresholds, based on transceiver classes for G-PON (A, B, B+, C, C+, Ext C+, Ext D) or XGS-PON (10G-N1, 10G-N2, E1, E2), or enter custom limits in the User Defined sections.

To modify the User Defined threshold values, slide the markers left and right to adjust, or tap on the blue boxes to directly enter the desired maximum and minimum values in dBm, for the signal power level limits allowed.

Tap on the ⟨ Back arrows to return to the previous screens and Test Results.

Optical Power Measurement Results

Optical Power Meter results with G-PON and XGS_PON passing the power level thresholds at the OLT site Optical Power Meter results with G-PON failing the C+ power level threshold at the OLT site GPON OPM results without signal detected

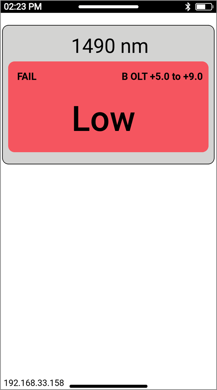

Optical power levels that fail the minimum or maximum thresholds, for the selected Site and Class, are highlighted in red and marked as FAIL. Levels within the expected threshold limits will be highlighted in green and marked PASS. If no signal is detected, the test set displays Low.

Note: Contrary to common Broadband OPMs, which don't discriminate between the optical signals coming in, a Selective PON OPM WILL NOT measure signals outside of its working bands (e.g., 1490 nm for G-PON, 1577 nm for XGS-PON) and it will display Low or very attenuated values for any other wavelengths that may be present in the fiber under test.

Certain optical distribution networks carry a TV Broadcast signal over the 1550 nm wavelength, however, that does not affect the accuracy of the GPON and XGS-PON level measurements, when the right selective OPM is being used.



PON Optical Distribution Network (ODN) Classes

The measurements' standard PASS/FAIL criteria are based on the optical level thresholds that depend on the location (site) in which the measurements were taken, the type of PON network and the expected ODN Class.

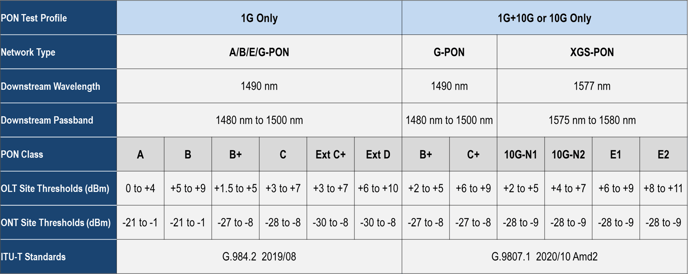

Standard optical power level ranges, based on Class and Location, determine the Pass or Fail criteria



3.2 Ethernet Settings & Connection

LAN - Wired 10/100/1000BASE-T Test ModeSwipe down from the top, to open the System & Tools menu, then tap on the Ethernet button to select the RJ45 LAN interface for testing and/or connectivity. The RJ45 test interface is capable of testing full-duplex Internet access speeds up to 1 Gbit/s over wired Ethernet interfaces.

The test set can be connected to ONTs, modems, router and switches to run Ookla Speedtest or iPerf3 to verify the link or network’s speed test performance and confirm that it has been properly installed and provisioned.

  • 10/100/1000BASE-T test interface.
  • Power over Ethernet (PoE) detection. (Coming soon)

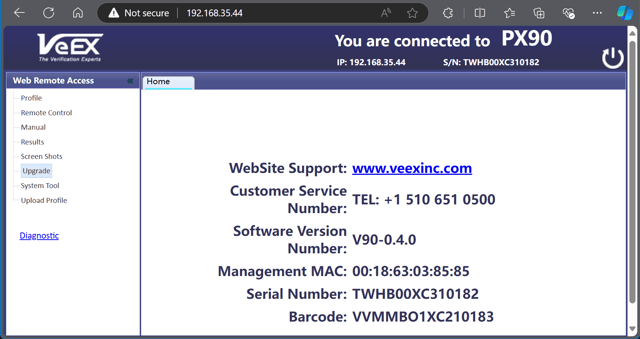

  • Provides local and remote LAN management access to the test set (e.g. R-Server, EZ-Remote Control).

Test Application Settings and Functions Menu

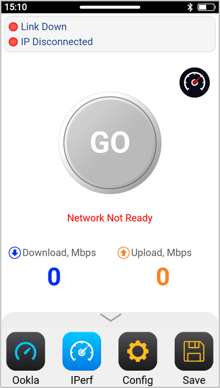

After selecting the Ethernet Test mode, the screen shows the Speed Test GUI. Swipe up from the bottom to reveal the Functions menu and tap on Test configuration button Config button to setup the 10/100/1000BASE-T interface.

VeEX PX90 10/100/1000BASE-T Speed Test Functions menu (swipe up) VeEX PX90 Speed Test main configuration page

On the Network Information section, tap on the Configure Interface parameter (in blue) to select the IP operation mode:

  • DHCP for dynamic IP Address, assigned by the modem, gateway, router or the network.
  • Static to enter the designated fixed IP Address, Subnet, Gateway and DNS information.

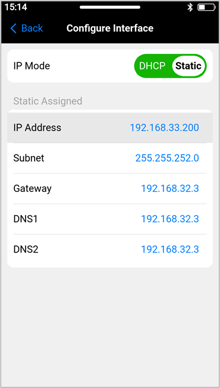

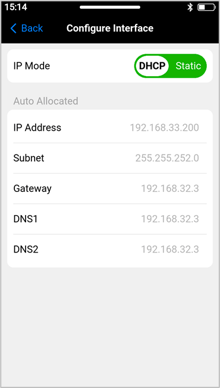

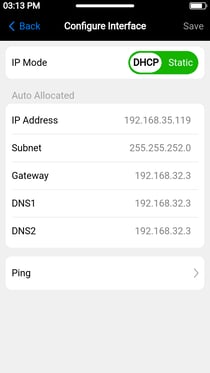

VeEX PX90 test interface IP configuration page, in DHCP mode VeEX PX90 test interface IP configuration page, in Static IP mode

Once configured to match the link under test, connect the test set's RJ45 test port to the service under test and the IP connection will be active (in DHCP mode the appropriate IP addresses assigned to the test set will be displayed in gray). Tap on ⟨Back to go to the previous menu and select the Test Mode, between Ookla Speedtest or iPerf3.

The main speed test page shows the Link Status and assigned IP Address. A round Red status LED indicator for RJ45 test interface or Green status LED indicator for RJ45 test interface Link Status soft LED indicates that the active test interface is RJ45 10/100/1000BASE-T. The Speed Test GO (start) button may be in gray (not ready) or green (ready).

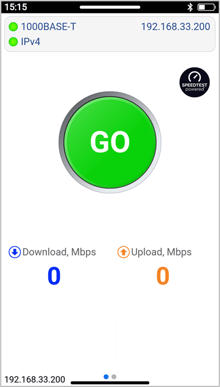

VeEX PX90 10/100/1000BASE-T (RJ45) Speed Test page, before measurement is started

Tap on the Connection Status summary box, on the top, to see more detailed information about the current LAN connection and quickly change the test port's IP configuration.

Connection status summary box. Tap to see more details and IP configuration

Note that if going back and forth between Ethernet and Wi-Fi testing, these two test interfaces will have different IP addresses.



3.3 Wi-Fi Scan & Connection

WLAN - Wireless Wi-Fi 4/5/6/6E Test ModeSwipe down from the top, to open the System & Tools menu, then tap on the Wi-Fi button to select the Wi-Fi WLAN interface for testing and/or connectivity (optional features). Scan for available networks and view all access points’ (AP) detailed information along with SSID, signal strength, channel allocation, supported Wi-Fi types, Max PHY Rates.

The test set can connect to Access Points with WEP, WPA, WPA2 and WPA3 encryption and run Ookla Speedtest or iPerf3 to verify the wireless network’s speed test performance and confirm that it has been properly installed and provisioned.

  • Access Points scan with signal level and additional AP details allow wireless coverage tests to identify weak spots.
  • Supports 2.4 GHz, 5 GHz and 6 GHz bands, as well as 802.11a/b/g/n/ac/ax.
  • Supports WPA3, WPA2, WPA1 and WEP encryptions.
  • Provides Wi-Fi WLAN management access (local and remote) to the test set (e.g. R-Server, EZ-Remote Control).

Test Application Settings and Functions Menu

After selecting the Wi-Fi Test mode, the screen shows the Wi-Fi Access Point (AP) Scan results page or swipe left/right to find it. A list of available access points is displayed with basic information.

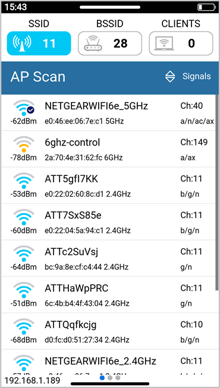

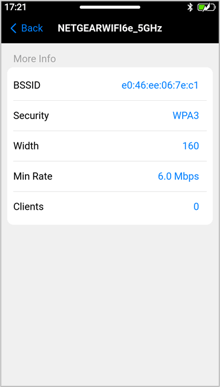

VeEX PX90 Wi-Fi Scan results page VeEX PX90 Access Point (AP) Information VeEX PX90 access point More Info page

Tap on the SSID count information and filter SSID (Service Set IDentifier) button to consolidate all access points belonging to a wireless hot spot network and sharing the same name or tap on the Number of BSSID discovered nearby BSSID (Basic Service Set IDentifier) button to display all the individual access points available. Modern Wi-Fi routers can be provisioned to host multiple hotspots for each of the wireless bands.

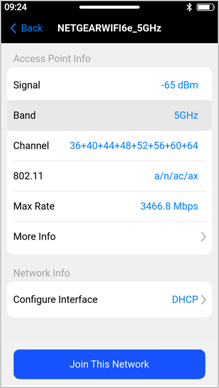

Tap on the AP of interest to get its details. Tap on More Information to get more details about the AP.

By default, Wi-Fi normally runs on dynamically assigned IP Address mode (DHCP), however you may tap on the Configure Interface field to set it to a specific Static IP Address.

To connect to the selected Access Point, tap on the Join This Network button, tap on the Password field, enter the password, tap on Return and then tap on Join button.

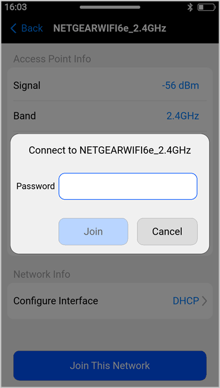

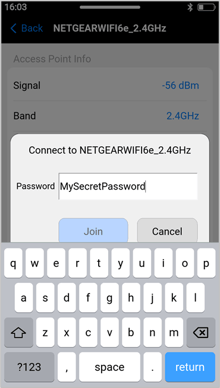

VeEX PX90 WiFi access point password field (empty) VeEX PX90 Wi-Fi password edit

Swipe up from the bottom to reveal the Functions menu and tap on Test configuration button Config button setup certain Wi-Fi scanning and connection behaviors and view the Saved Networks. Tap on Edit to Delete the access points no longer required for regular use.

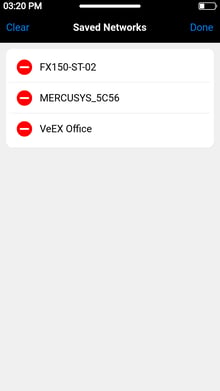

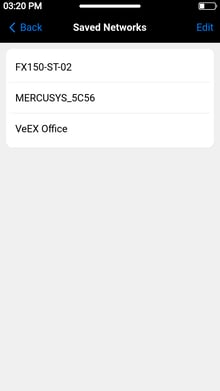

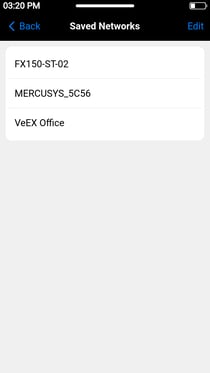

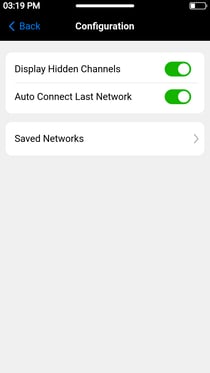

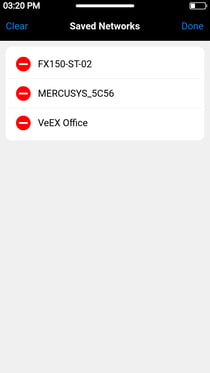

VeEX PX90 general Wi-Fi configuration and saved access points

Tap on ⟨Back to go to the Scan results, swipe left to find the Speed Test page and select between Ookla Speedtest or iPerf3 test modes.

The main speed test screen page shows the Link Status and assigned IP Address on the top of the screen. A Red status LED indicator for Wi-Fi test interface or Green status LED indicator for Wi-Fi test interface Link Status icon indicates that the active test interface is Wi-Fi. The Speed Test GO (start) button may be shown in gray (not ready) or green (ready).

VeEX PX90 Wi-Fi Speed Test page, before measurement is started (Not Ready)

Tap on the Connection Status summary box, on the top, to see more detailed information about the current Access Point being used.

Connection status summary box. Tap to see more WLAN details

Note that if going back and forth between Ethernet and Wi-Fi testing, these two test interfaces will have different IP addresses.



3.4 Ookla Speedtest® - Internet Access Speed Tests

Ookla's Speedtest Powered logoThis commonly used Internet speed test evaluates the TCP protocol performance of the access network by testing against ubiquitous Ookla’s Speedtest® servers. This Layer 4+ test stresses the link and service up to the test interface’s maximum line rate, providing key performance indicators (KPI) such as connection time to the server, data transfer time, and line rate throughput rates, all reported during the test. This test is also known as V-TEST in other VeEX test sets.

In Speedtest Powered® mode, the test follows Ookla’s methodology and tests to the Speedtest Server Network. In this mode, the test is compatible with Ookla’s protocol/methodology; it scans nearby servers in the local market and tests against the server with the fastest (lowest latency) response.

  • Works with wired Ethernet and Wi-Fi links.
  • Compatible with public Ookla Netgauge servers.
The Speedtest Powered® icon will remain visible on the main test page, to remind users of the current/active Test Mode.

3.4.1 Test Application Functions & Settings Menu

Swipe-up from the bottom to reveal the Test Application menu.

Test application menu (swipe up to display it) for Ethernet & WiFi, with Ookla Speedtest selected

  • Tap on the Ookla_Speedtest_Settings-button Ookla button to select Speedtest as the active Test Mode.
  • Tap on the Test configuration button Config button (or on the Speedtest Ookla_Speedtest_Mode-logo icon) to setup the Speedtest test parameters.
  • After running a test, tap on the Save test results Save Results button to store the current test results. Users can overwrite the default File Name with a custom name, as well as add extra information such as Job ID, Node ID (Location or Site), subscriber's Account. Tap on the OK button to save.

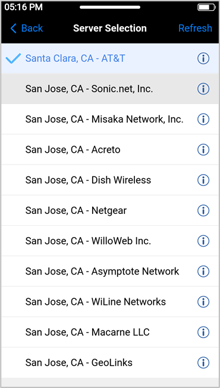

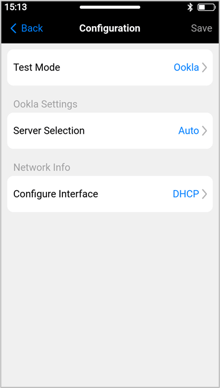

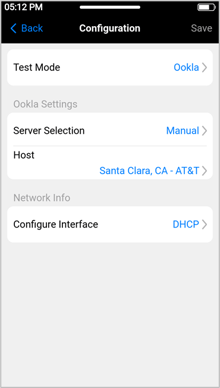

On the Configuration page, make sure the Test mode is set to Ookla Speedtest mode. The Server Selection is set to Auto by default, which uses Ookla's closest server selection algorithm. However, users can set it to Manual and select a specific target Host (server) to test against.

Use the Configure Interface field to set the test interface's IP Address behavior, DHCP (dynamic) or Static

Tap on ⟨Back (or swipe right) to go back to the main Speedtest page. Make sure to stablish the appropriate connections, the Ethernet (LAN) or Wi-Fi (WLAN) link is active and the GO button is green. Press GO to start the test.

3.4.2 Speedtest Results

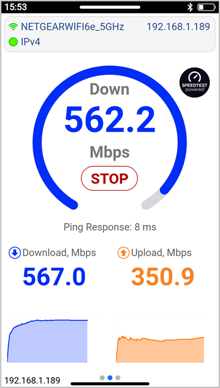

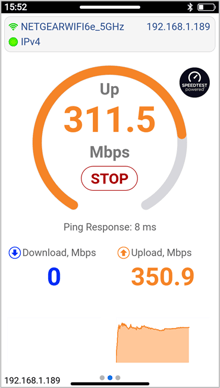

After pressing the GO button, the test set starts by measuring the attainable throughput speeds for the Upload (upstream) and then the Download (downstream).

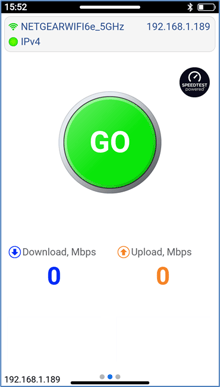

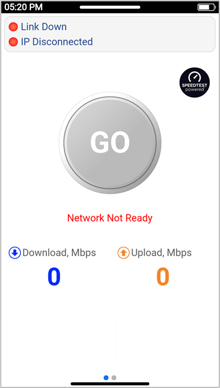

VeEX PX90 Wi-Fi Speed Test page, before measurement is started (Ready) VeEX PX90 Ookla Speedtest Upload measurement VeEX PX90 Ookla Speedtest Download measurement

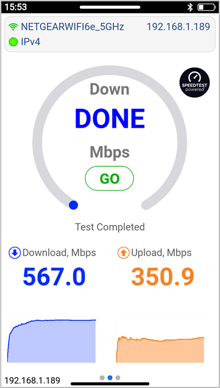

When the test has finished, it displays DONE.

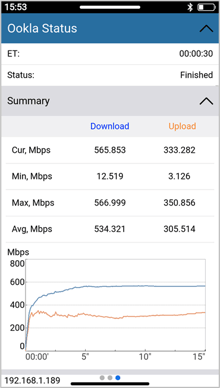

VeEX PX90 Ookla Speedtest final results VeEX PX90 Ookla Speedtest final results in detail

Swipe left to see the detailed Test Report. Scroll up and down to go through all the details. The different sections of the report can be collapsed or expanded, to better focus on the key performance indicators (KPI) and information preferred by the user.

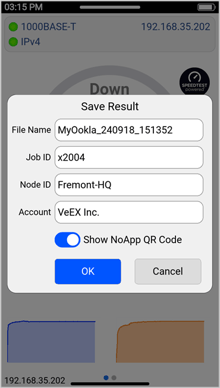

Swipe up and tap on the Save test results Save button to store the current test results or swipe right to run a new test.



3.5 iPerf TCP/UDP Speed Test

iPerf (RFC6349) speed test logoThe iPerf Internet Performance test (also known as V-PERF in other VeEX products) is a more advanced Layer 4+ network performance validation tool, based on RFC6349 test methodology, that is used to measure the maximum available bandwidth between two devices over a network. It can test both TCP (Transmission Control Protocol) and UDP (User Datagram Protocol) connections, offering insights into network speed, stability, and potential issues.

The TCP test focuses on measuring the maximum achievable bandwidth while ensuring reliable data transmission, providing metrics such as bandwidth, latency, and retransmissions.

On the other hand, the UDP test measures bandwidth without error correction, making it suitable for real-time applications like video streaming. iPerf provides metrics such as bandwidth, packet loss and jitter.

  • Works with wired Ethernet and Wi-Fi links.
  • TCP or UDP Throughput tests.
  • Stateful TCP or UDP Tests at the test interface's maximum line rate.
  • TCP/UDP Client and Server modes.
  • Compatible with iPerf3 Clients and Servers.
  • Measurements: TCP or UDP upstream and downstream Throughput rates (current, minimum, maximum, average), TCP retransmissions, UDP packet loss, UDP packet jitter.
The iPerf speedometer icon will remain visible on the main test page, to remind users of the current/active Test Mode.

3.5.1 Test Application Functions & Settings Menu

Test application menu (swipe up to display it) for Ethernet & WiFi, with iPerf speed test selected

Swipe-up from the bottom to reveal the Test Application menu.

  • Tap on the iPerf_Settings-button iPerf button to select it as the active Test Mode.
  • Tap on the Test configuration button Config button (or on the iPerf (RFC6349) speed test logo icon) to setup the iPerf test parameters.
  • After running a test, tap on the Save test results Save Results button to store the current test results. Users can overwrite the default File Name with a custom name, as well as add extra information such as Job ID, Node ID (Location or Site), subscriber's Account. Tap on the OK button to save.

On the Configuration page, make sure the Test mode is set to iPerf3 speed test mode. On the iPerf Settings section, set the target iPerf Server to test against, by selecting a test Profile. Expand the Details section to edit the test configuration.

VeEX PX90 iPerf test configuration page

The configuration for different tests and target servers can be saved as Profiles, to recall the same configuration for future use.

  • Mode - The default is Client mode is the most common application for this test set, to test from the customers' premises towards a centralized known/trusted remote iPerf3 server. Server mode is also available for certain isolated test scenarios.
  • Server IP - The address of the iPerf3 server must be reachable from the test site.
  • Server Port - TCP port used for all iPerf3 traffic.
  • Direction - Typically the test is run for both directions Upload & Download, however users can also select to tests in one direction, Client to Server (Upload) and Server to Client (Download).
  • Protocol - Select between TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).
  • Streams - Number of concurrent test streams used for the test (op to 16). The appropriate or optimum number of streams depend on several factors, including the server, service under test and test procedure.
  • Duration - Duration of the test for each direction.
  • Bottleneck Bandwidth - Sets the target bandwidth to N Mbps (Mbit/s) or Gbps (Gbit/s), with a default value of 1000 Mbps. If there are multiple streams, the bandwidth limit is applied separately to each stream.

Once modified to fit the application, Save it as a Profile with a unique descriptive name. To create new profiles, on the Profile page, tap on Edit and use the Add function icon Add function or use the Copy (clone) icon Copy function to clone an existing profile and use it as a starting point for the Delete icon New one. Use the delete function for the profiles no longer needed.

VeEX PX90 Edit Profiles list

Use the Configure Interface field to set the test interface's IP Address behavior, DHCP (dynamic) or Static

Tap on ⟨Back (or swipe right) to go back to the main iPerf3 speed test page. Make sure to stablish the appropriate connections, the Ethernet (LAN) or Wi-Fi (WLAN) link is active and the GO button is green. Press GO to start the test.

3.5.2 iPerf Throughput (Speed Test) Results

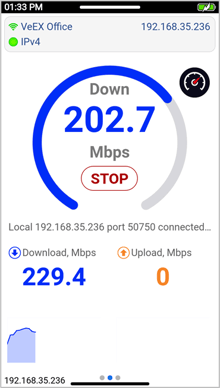

After pressing the GO button, the test set starts by measuring the attainable throughput speeds for the Download (downstream) and then the Upload (upstream).

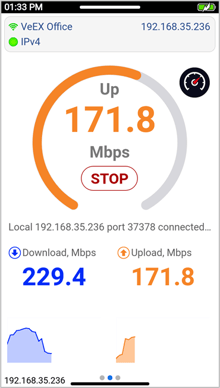

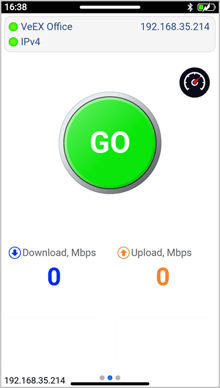

VeEX PX90 main iPerf3 speed test page, idle and ready) VeEX PX90 iPerf Download test VeEX PX90 iPerf Upload test

When the test has finished, it displays DONE.

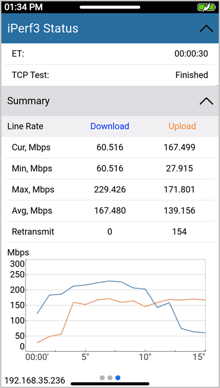

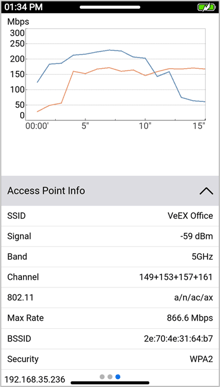

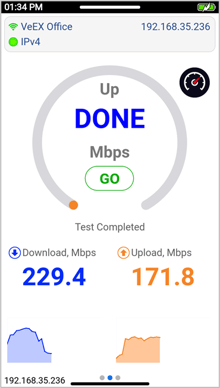

VeEX PX90 iPerf test DONE VeEX PX90 iPerf test results VeEX PX90 iPerf test results (more)

Swipe left to see the detailed Test Report. Scroll up and down to go through all the details. The different sections of the report can be collapsed or expanded, to better focus on the key performance indicators (KPI) and information preferred by the user.

Swipe up and tap on the Save test results Save button to store the current test results or swipe right to run a new test.

Refer to the following video for a Quick Guide on how to use the PX90 to test Internet performance with iPerf.



4. File Manager - Results, Profiles & Screenshots

image-png-Sep-12-2024-10-47-47-8697-PMSwipe down from the top of the screen to reveal the System, Settings & Tools menu, then tap on the Files button to access and manage stored test results, test profiles (configurations) and screenshots (screen capture image files). A list of stored files is displayed.

Tap on the ResultsProfilesScreens, at the top of the page, to select the type of files to be displayed. The current type is highlighted in blue. Use the Sort files alphabetically in descending order/Sort files alphabetically in ascending order and Sort files by Date and Time in descending order/Sort files by Date and Time in ascending order to sort the files in descending or ascending order, based on file name or timestamp. The File Manager storage status information provides information about the amount of internal storage being used and the number of files currently stored.

  • To manage individual files, select the desired file and swipe half-way to the left, to open the individual file Edit menu.
  • Touch and hold one of the files to access the multi-file functions and tap on Close when finished. (There must be at least one file stored in the test set for this to work.)

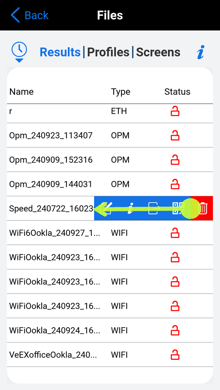

VeEX PX90 File Manager screen, selecting a file and swiping left to access the single file Edit functions On the VeEX PX90 File Manager, touch and hold, to access the multi-file functions

Renames selected file Rename file.

Displays basic file information and allows locking and unlocking File Information - Shows basic test results details and Lock/Unlock function. Locked files can't be deleted.

Transfer selected file to attached USB memory stick, via Bluetooth or upload to R-Server cloud Transfer File(s) - Share selected file(s) through Transfer file to PC/tablet/phone using Bluetooth connection Bluetooth, export to attached Copy files to attached USB memory stick USB memory stick (backup) or upload to Upload test results to R-Server cloud storage R-Server.

Generates NoApp QR code for the selected file Generate QR Code - Easily transfer test results to smartphones and tablets with NoApp cloud services. (The default setting for this function can be enabled or disabled in Settings, on the main menu.)

Delete selected file Delete individual file - Files can be Touchscreen unlock button displayed when the screen is locked locked to prevent accidental deletion.

Delete file icon Delete all selected files.

Load files from USB memory stick icon From USB - Restores (loads) previously exported test results, profiles and screenshots from the attached USB memory stick.



5. NoApp® Contactless Results Transfer via NFC and QR

VeEX's (patent pending) NoApp® cloud service enables test sets to quickly and easily transfer test results' KPI to a phone or tablet, to instantly generate test reports, augment them with job-related information, notes/comments, geolocation, pictures, files, etc. It also allows the generation of PDF reports, sharing via email and SMS, or uploading to centralized R-Server cloud.

5.1 Using NFC Wireless Transfer

Near Field Communication logo and transceiver location indicationThe V90 series of test sets support Near Field Communications (NFC), which works in conjunction with VeEX's NoApp® cloud service to extract test results from the test set. To use it, just save the test results and bring the top of a modern smartphone close to the instrument's NFC logo. An NFC website notification should immediately appear. Tap on the pop-up message to access the test report. (Internet connection is required on the smartphone.). Click on the images for a quick demonstration video.

NFC test result transfer notification


V90 test results transfer to smartphone via NFC

With this innovative application of the solid NFC technology, the NoApp solution provides an always ready-to-use, up-to-date, contact-less, connectionless, secure, fast, simple and efficient test results data transfer, report generation and sharing platform. No preparation, settings or installation required!

The last test result saved may remain available on the NFC transceiver's memory, to be transferred at any time, even if the test set is OFF.

Since NFC is natively supported by modern smartphones, no recurrent IT approvals, no installations and no constant release updates are required for the everchanging iOS and Android ecosystems.

The NFC results transfer feature may not be available for all test functions offered in the initial software releases.

5.2 Using QR Code Transfer

When saving test results, users have the option to generate NoApp® QR codes to immediately transfer such results to a smartphone or tablet, using their native camera app or QR code reader functions. No application download, installation or settings are required. To enable it, just turn ON the Show NoApp QR Code on the Save Result file pop-up. The QR code gets generated as the test result file is saved. Scan the QR code below to try out the NoApp functionality. The default state for this slider button can be set to Enabled or Disabled by going to Settings, from the main menu.

VeEX PX90 NoApp QR Code generation enabled in the Save Results pop-up VeEX PX90 NoApp QR Code. Use a smartphone or tablet camera to scan and transfer the test results

VeEX PX90 NoApp QR Code results transfer



The NoApp QR Code generation functionality may not be available for all test functions offered on the initial releases.



6. Software Updates

Keeping the test set up to date, by upgrading its software to the latest available version, is very important. Download the installer package provided by VeEX and unzip (uncompress) the px90-veex-arm.tar.gz installer package. The computer may identify it with a compressed folder icon, however there is no need to further uncompress it.

6.1 Using a Web Browser

  1. Verify that the test set's battery has >50% charge, it is connected to its charger and charging.
  2. Establish a LAN or WLAN (Wi-Fi) connection and note the test set's IP address.
  3. On a computer, connected to the same network, open a web browser and point it to the test set's IP address, to open its Web Remote Access page.
    • VeEX's PX90 Web Remote Access page provides multiple data management functions
  4. Select Upgrade from the left menu.

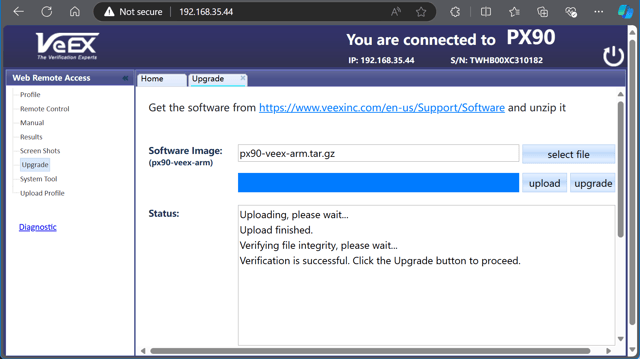

    • VeEX's PX90 software update via web browser
  5. Click on Select File button and use the File Browser to select the uncompressed installer package, then click on Upload to transfer it to the test set.
  6. Once the file upload has finished and has been verified, click on the Upgrade button, then on OK to start the software update process in the test set.
  7. The test set may reboot multiple times during the process. DO NOT turn it OFF, until it has finished.

6.2 Using USB Memory Sticks

  1. Verify that the test set's battery has at least 50% charge, then turn the test set OFF.
  2. Copy the px90-veex-arm.tar.gz file to the root of the memory stick.
  3. Insert the USB-C memory stick into the test set. (If using a USB-A memory stick, use the USB-A to USB-C adapter.)
  4. Turn the test set ON. It should recognize the installer package file and automatically start the software upgrade process. The test set may reboot multiple times during the process. DO NOT turn it OFF, until it has finished.

For More Information

Related Test Solutions

  • FX41xT - Selective Optical Power Meter for G-PON and XGS-PON
  • FX81T - 1G/10G Pass-Through PON Optical Power Meter
  • FX120-Lite - GPON & XGS-PON Analyzer
  • FX120 - GPON & XGS-PON Analyzer & Multi-Gigabit Internet QoE
  • NoApp® Cloud Service Guide
  • VeSion® R-Server - Cloud-Based Workflow and Asset Management
