Test With Flow - Running a Flow
How to run and close a Flow.

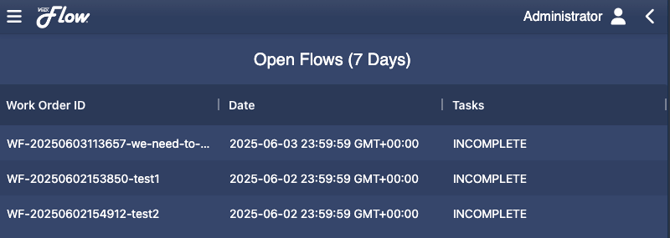

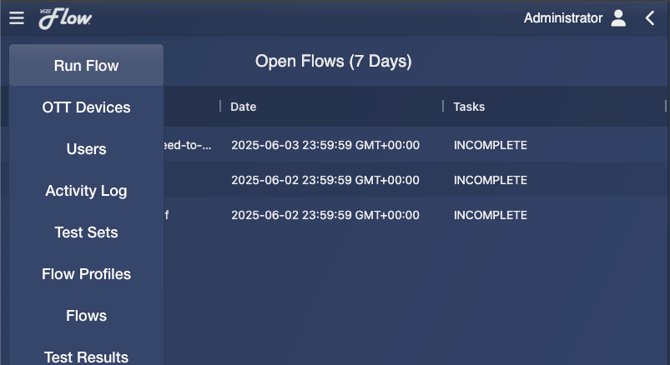

By default, the home page for each user displays a list of Flows that have been active in the past 7 days. This convenient list can be accessed at any time by expanding the menu and selecting Run Flow.
Tip: A "Run Flow" button is always available at the bottom of the screen for On-Demand Flow access.
Running an assigned Flow
To run an assigned Flow, simply select and click on the target Flow from the list.

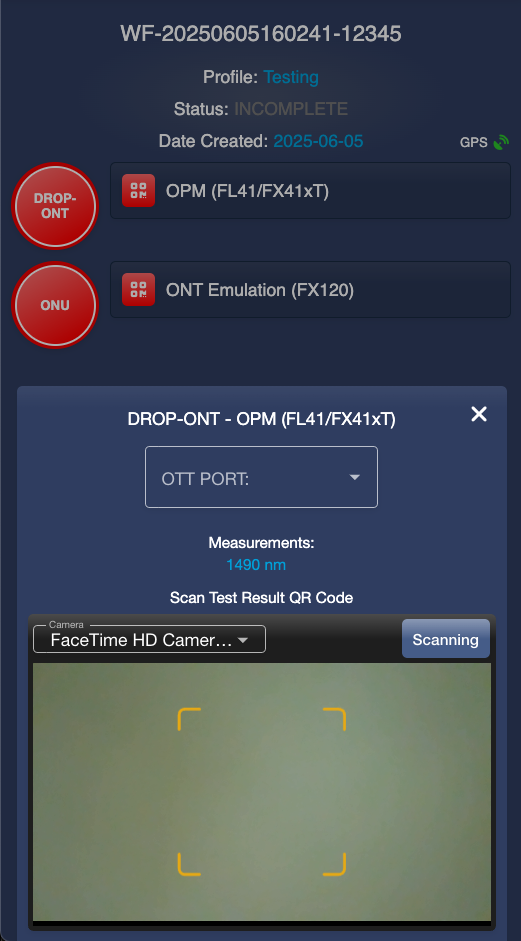

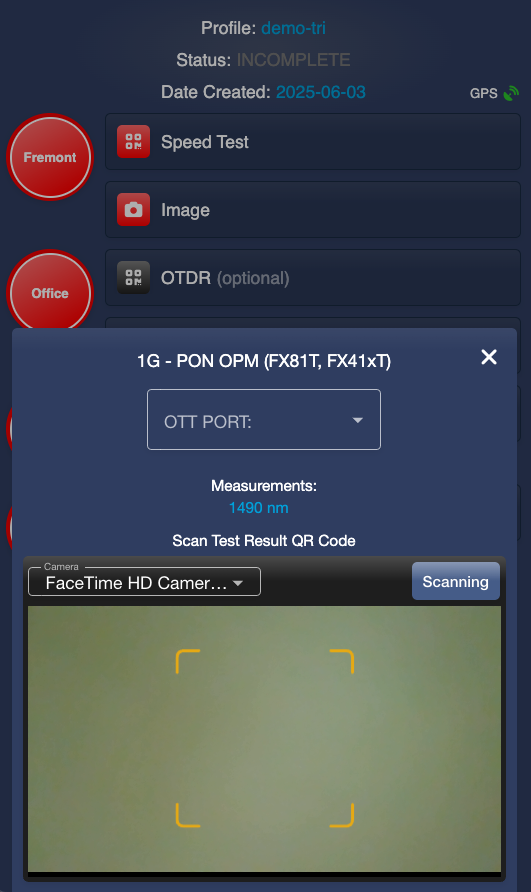

The Flow will begin and any progress made will be saved automatically, including pressing back on the page or even closing the browser. Users have the flexibility to pause and resume the Flow at any time.
Creating and running a new Flow
Users also have the freedom to create their own personalized Flow in addition to receiving assigned ones from the Company's Administrator account.
In the Run Flow page, click on the Start New Flow () at the bottom.

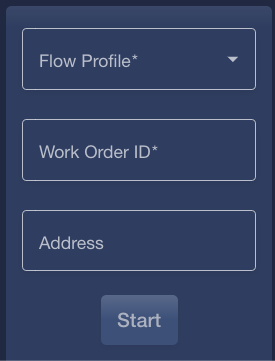

A menu will appear requiring the user to select a Flow Profile, a Work Order ID, and optional Address.

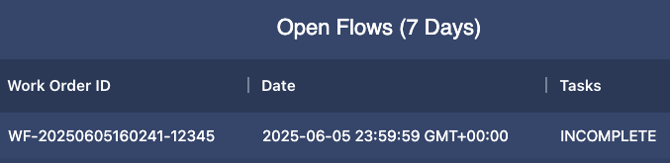

Once Start is clicked, the Flow will start automatically. Similar to assigned Flow, the user's custom Flow will automatically save any progress.
Custom Flow will have "WF-yyyyMMddHHmmss-" prepended to the Flow Work Order ID.
Closing a Flow

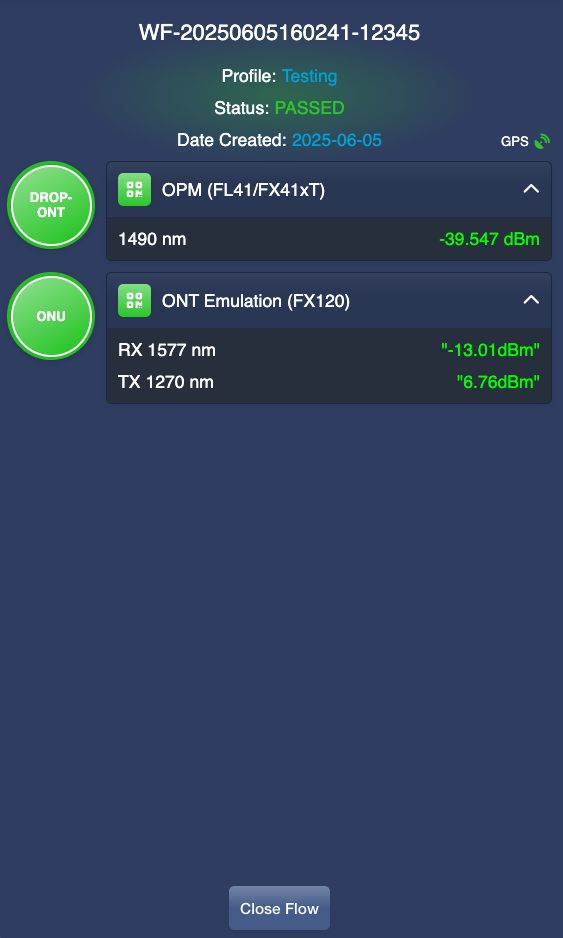

Once completed, the user will be presented with a summary step leading to a screen where each step and its status is presented.

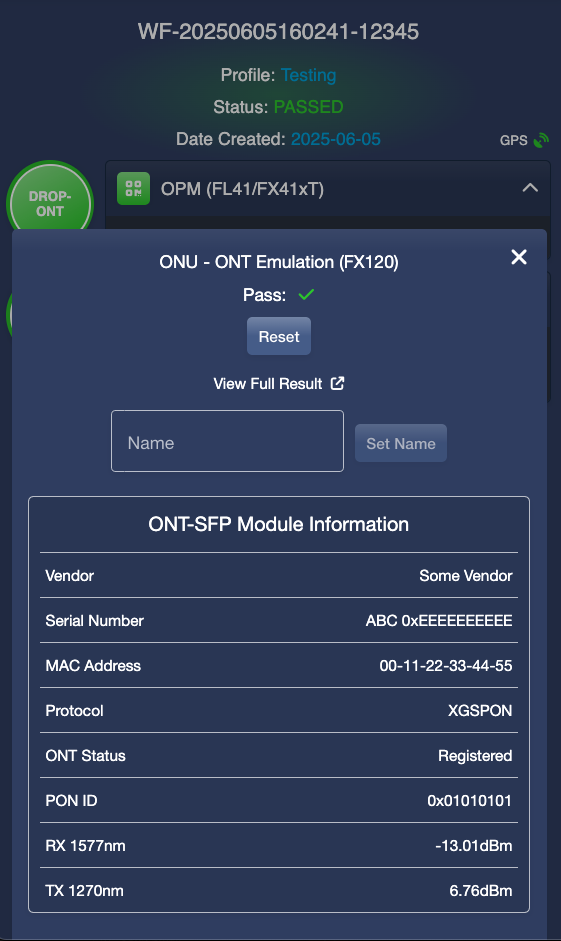

To view each individual result, simply click on the value of the targeted step. View Full Result will take the user to the complete result.
If not satisfied, the user will have the ability to go back and redo the step at any given time by clicking Reset ().
Once all is satisfied, the user can click Close Flow () to close the current Flow. Choose OK when notified.
Note: A closed Flow is permanent and cannot be modified.
Viewing Flow Test Report

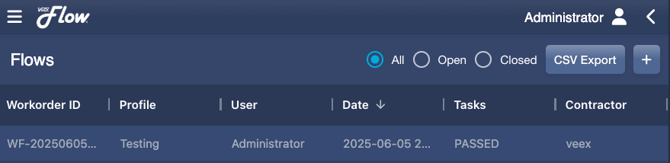

View the final report by navigating to the Flowspage and clicking on the targeted Flow. All closed Flows will have a weaker font. User can filter using the All/Open/Closed selection.

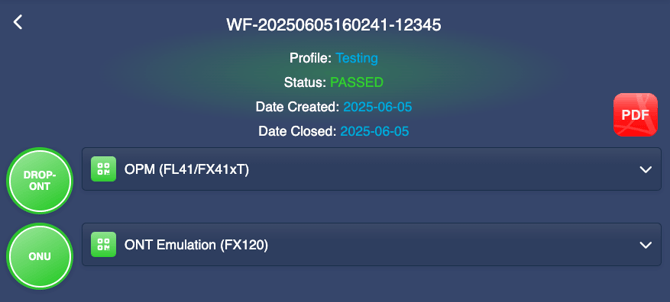

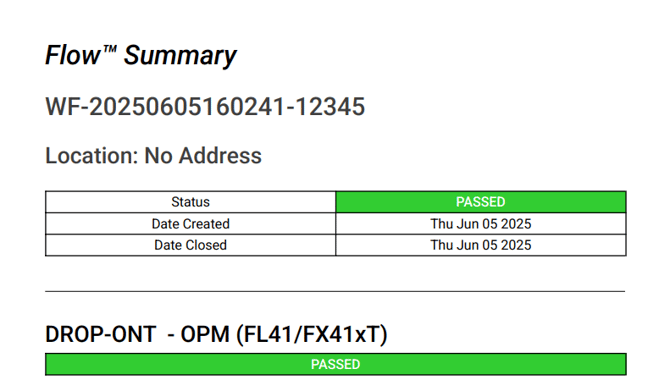

The completed Flow page will appear. The user can expand to see all the measurement summaries as well as the full test result. The compiled report can be exported to PDF by clicking the PDF button.
To get started with Test with Flow and experience its benefits, visit our website and try it out today!
