How to Perform Bidirectional E1/T1 Monitoring? Balanced RJ48 Y-Cable Wiring

Often mistakenly referred as "RJ45", the modular registered jack (RJ) connectors for balanced 120Ω E1 and T1 interfaces, on VeEX products, are based on the standard RJ48 wiring on an 8-position, 8-conductor (8P8C) modular connector.

Refer to the What is the pinout for the balanced RJ48C article for more details.

Bidirectional E1/T1 Monitor (RJ48M)

For bidirectional tap monitoring applications, the modular connector on certain VeEX test sets adopt the RJ48M pinout, adding pins for a secondary receiver. This allows test sets, configured in High Impedance (Hi-Z or Bridge) mode, to tap the link and monitor the T1 or E1. For example, if both directions are transmitting standard test patterns, the test set can monitor the alarms, errors and BER for each direction. Such applications require a custom-made Y-Cable.

RJ48M Pinout (Test Set in Balanced Dual Port Mode)

Pin 1: Rx1- (A/Ring)
Pin 2: Rx1+ (B/Tip)
Pin 3: No connection
Pin 4: Tx1- (A/Ring)
Pin 5: Tx1+ (B/Tip)
Pin 6: No connection
Pin 7: Rx2- (A/Ring)
Pin 8: Rx2+ (B/Tip)

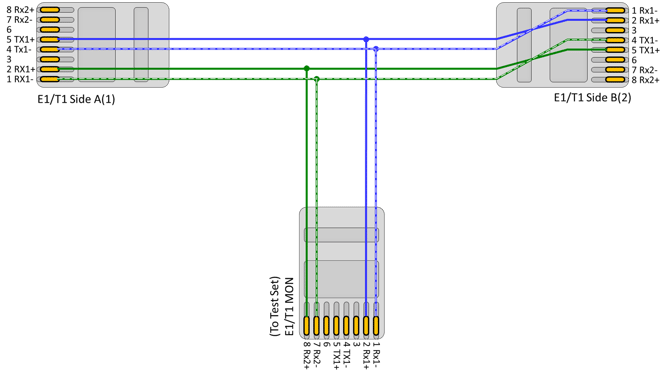

E1/T1 Monitor Y-Cable Wiring

Although VeEX does not offer an E1/T1 RJ48 Monitoring Y-Cable, it is quite easy to build one, using UTP cable and basic crimping, based on the wiring details below.

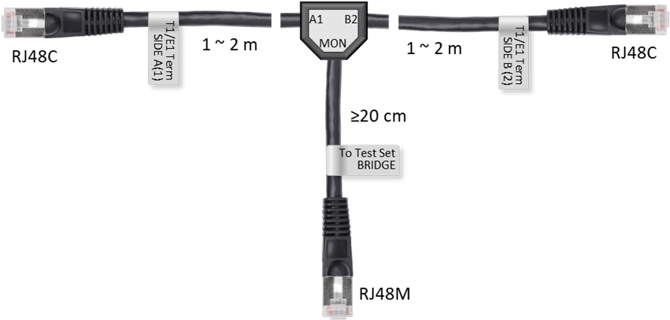

Here is a suggested implementation of the Y-Cable
