Can Existing VeEX Instruments be Retrofitted with the Optical Connector Protector System?

Yes, many VeEX fiber optics test sets, with physical contact test ports, can be retrofitted with the Optical Connector Protector options, to take advantage of the Field Replaceable Ferrule system. Refer to the Related Test Solutions section for the list of supported meters.

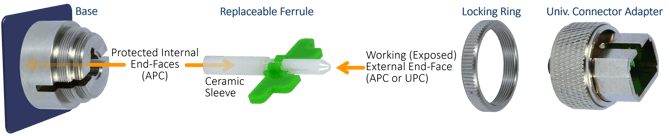

Detailed visual description of VeEX's Optical Connector Protector 'Dragonfly' Field Replaceable Ferrule system and internal protected end-faces

One of the key design features of the Optical Connector Protector's patent pending design is that it uses standard panel mount holes, hence replacing the connector base is fairly simple, so there is no need to buy a brand-new test set to take advantage of its cost and time saving benefits. However, this procedure must be performed at an authorized service center.

If a test set needs to be sent to a service center for optical connector repairs and/or recalibration, it is worth considering performing the upgrade to the Optical Connector Protector option at that moment. It will save you money. However, such upgrade may not make sense for certain simpler low-cost meters, such as power meters, since the total cost of involved parts, labor and shipping could justify replacing them with brand-new meters instead.

The cost of the upgrade varies depending on the type of test set, its configuration and current condition, due to the number of ports involved and whether recalibration is required or not.

Please contact our local Sales, Representative, Authorized Distributor, or use the Contact Us page to request more information and quote. Include the serial number(s) as a reference, so we can provide a more complete answer.

Refer to the Optical Connector Protector article for further details about this replaceable ferrule solution.

Can Existing VeEX Instruments be Retrofitted with the Optical Connector Protector System?

Most VeEX optical test sets, with physical contact test ports, can be retrofitted with the Optical Connector Protector options, to take advantage of the Field Replaceable Ferrule.
